8040 FRP (2) Element RO Membrane Housing Reverse Osmosis 8Inch 450PSI

Description

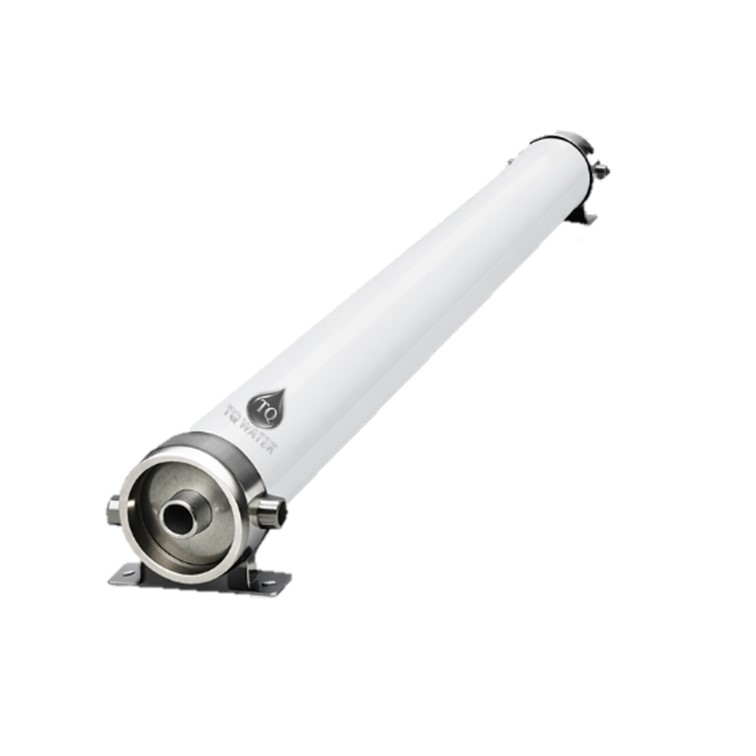

8″ Membrane Housing – 1 to 6 Elements (450 PSI)

SKUs: 80S45-1 | 80S45-2 | 80S45-3 | 80S45-4 | 80S45-6

• Full Description: The 80S45 series provides a significant safety margin for systems operating near the limits of standard brackish membranes. Rated at 450 PSI, these vessels are ideal for “High-Flux” systems or high-recovery arrays where feed water salinity is elevated.

• The 6-Element Specialist (80S45-6): This is the “Workhorse” of large-scale water plants, allowing for the maximum number of membranes in a single footprint to reduce piping costs.

• Benefits:

  • Increased Pressure Threshold: Safely handles pressure spikes and high-concentration brine stages.

  • Fail-Safe End Closures: Features the patented Codeline locking mechanism for rapid, tool-free access during maintenance.

  • UV Resistant: Exterior polyurethane coating protects against sunlight degradation in outdoor installations.

    SKU	Element Capacity	Length (L)	Height / OD (H)	Approx. Weight (Empty)
    80S45-1	1 Element	1,514 mm (59.6″)	245 mm (9.6″)	~34 kg (75 lbs)
    80S45-2	2 Elements	2,530 mm (99.6″)	245 mm (9.6″)	~44 kg (97 lbs)
    80S45-3	3 Elements	3,546 mm (139.6″)	245 mm (9.6″)	~54 kg (119 lbs)
    80S45-4	4 Elements	4,562 mm (179.6″)	245 mm (9.6″)	~64 kg (141 lbs)
    80S45-6	6 Elements	6,594 mm (259.6″)	245 mm (9.6″)	~85 kg (187 lbs)
