Aug 26, 2025

Understanding Absolute Cartridge Filters: DOE, FIN 222, and FIN 226

Filtration plays a critical role across industries such as pharmaceuticals, food and beverage, water treatment, and electronics. To ensure product quality and safety, companies rely on absolute-rated filter cartridges, which guarantee consistent removal of particles at a specified micron rating. Unlike nominal filters that capture “most” particles, absolute filters provide precise and validated filtration, making them ideal for critical applications.

What is an Absolute Cartridge Filter?

An absolute cartridge filter is a pleated or depth-type cartridge designed to trap contaminants at an exact pore size. For example, a 0.22 µm absolute filter is validated to remove bacteria, making it suitable for sterile filtration. These cartridges are housed in filter housings, where liquid passes through the media, and unwanted particles are retained.

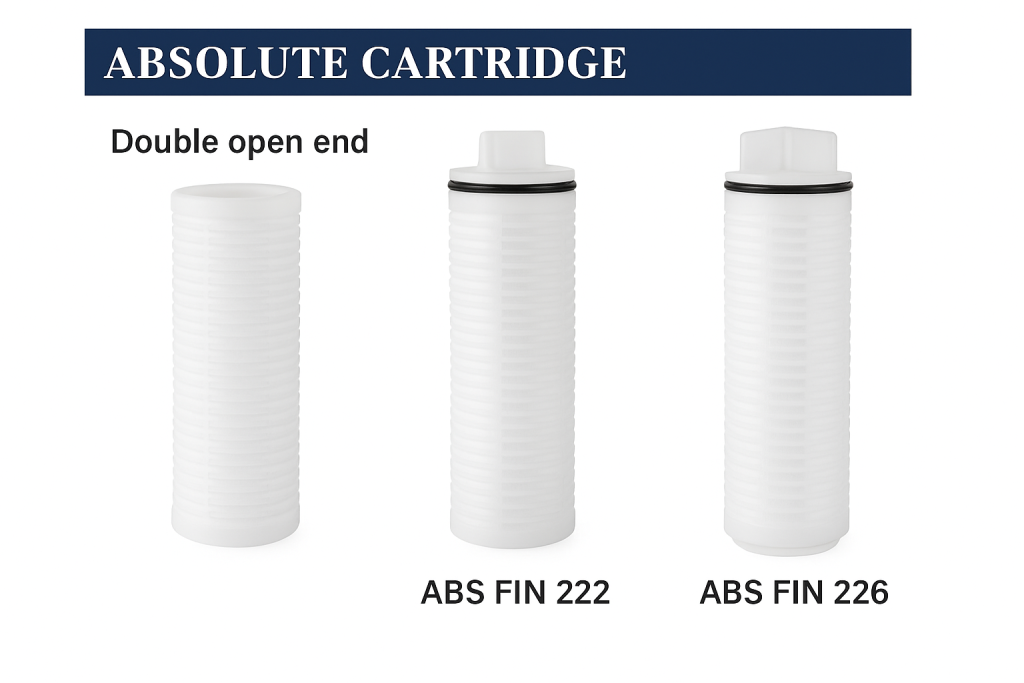

Common Configurations

1. Double Open End (DOE)

• Design: Both ends of the filter are open, with no O-rings.
• Application: Typically used in general water purification, food and beverage pre-filtration, and industrial applications.
• Advantages: Simple design, easy to install, and compatible with standard housings.

2. ABS FIN 222

• Design: Single Open End (SOE) cartridge with a fin-style closed top and a 222 O-ring fitting at the bottom.
• Application: Commonly used in pharmaceutical and biotech industries where secure sealing is critical to avoid bypass.
• Advantages: Provides a reliable seal, reduces risk of leakage, and ensures compliance in sanitary environments.

3. ABS FIN 226

• Design: Similar to FIN 222 but uses a 226 O-ring fitting, often with a bayonet lock to prevent movement under pressure.
• Application: Widely used in sterile filtration, critical water systems, and high-purity chemical processing.
• Advantages: Offers maximum sealing integrity, especially in high-pressure or high-temperature processes.

How These Filters Are Used in Practice

1. Water Treatment
   • DOE cartridges are often installed in multi-cartridge housings to remove sediment, rust, or microorganisms from municipal or process water.
   • In ultrapure water systems, FIN 222 or FIN 226 filters are preferred due to their sanitary design and leak-proof sealing.
2. Pharmaceuticals & Biotechnology
   • 0.22 µm absolute-rated FIN 222 or FIN 226 cartridges are validated for sterile filtration of injectable drugs, culture media, and biological products.
   • Their O-ring design ensures no contamination bypasses the filter.
3. Food & Beverage
   • Used for clarification and microbial stabilization in beer, wine, bottled water, and dairy products.
   • DOE filters may be used in pre-filtration, while FIN 222/226 cartridges handle critical microbial removal steps.
4. Electronics & Chemicals
   • High-purity chemical filtration requires FIN 226 cartridges for strong sealing to prevent leakage in corrosive or high-value fluids.
   • Ensures particle-free solvents and process fluids for semiconductor manufacturing.

Why the Correct End-Connection Matters

Choosing the right connection (DOE, 222, or 226) depends on the housing design and application.

• DOE → general use, cost-effective.
• FIN 222 → sanitary applications requiring secure sealing.
• FIN 226 → critical processes with higher sealing and locking requirements.

✅ In summary:
Absolute cartridge filters are essential for achieving high-quality, contamination-free liquids. Whether using DOE for industrial water treatment, FIN 222 for pharmaceutical sterile filtration, or FIN 226 for high-pressure sanitary applications, these filters protect processes, products, and ultimately, consumers.

Jul 29, 2025

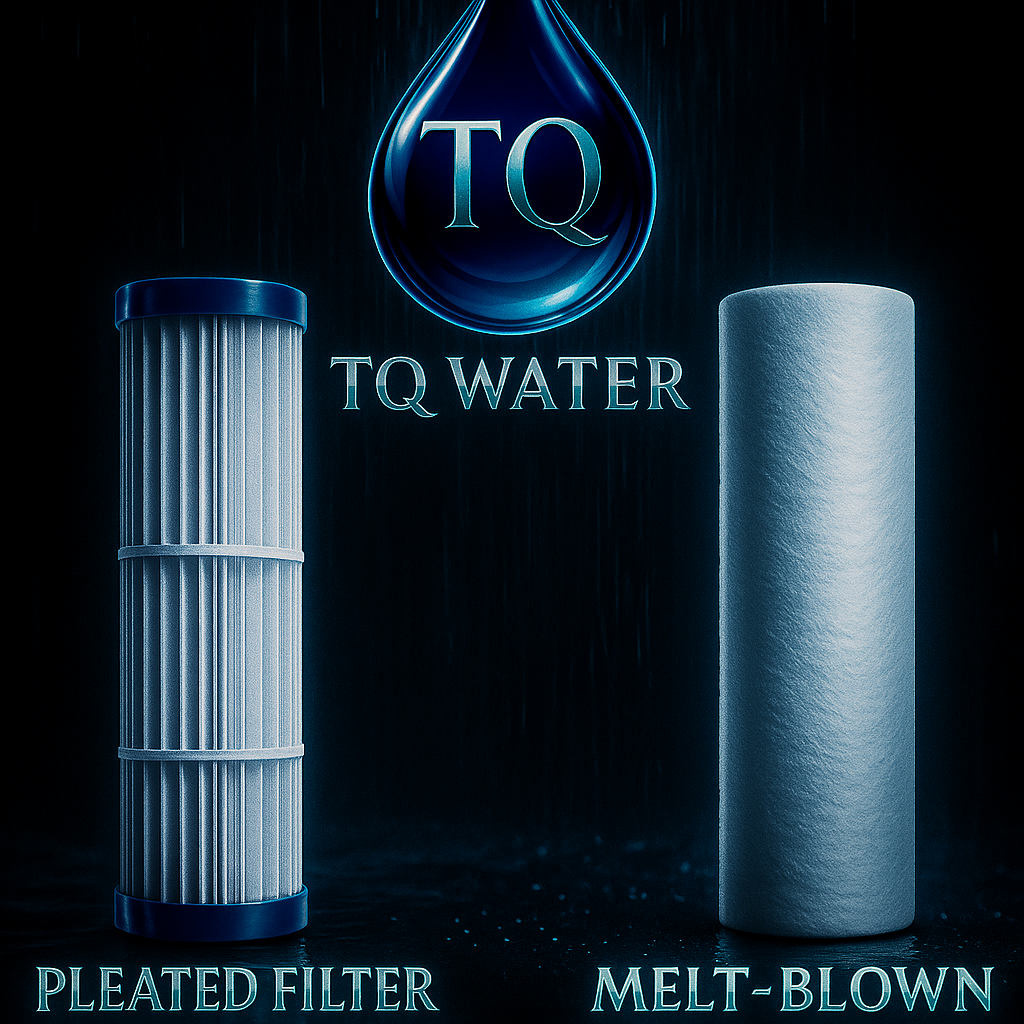

Pleated Filter vs. Melt-Blown Filter: Which One Is Right for Your Filtration Needs?

When it comes to water filtration—whether in industrial systems or residential setups—the right filter can make all the difference. Two of the most common types of filtration media are Pleated Filter Cartridges and Melt-Blown (Polypropylene or PP) Filters. Each type offers unique advantages and is suited for specific applications. Understanding the differences between these filters will help you make a more informed decision based on flow rate, particle retention, cost, and maintenance.

What is a Pleated Filter Cartridge?

Pleated filters are constructed from synthetic media like polypropylene, polyester, or glass fiber, which is folded into pleats to create a larger surface area. This design allows for higher dirt-holding capacity and longer service life. These cartridges are often used in demanding applications where precision and flow rate are critical.

Key Features:

• High filtration efficiency
• Large surface area due to pleated design
• Low initial pressure drop
• Washable and reusable in some models
• Available in a wide range of micron ratings (0.2 µm to 100 µm)

Applications:

• Pharmaceutical manufacturing
• Food and beverage production
• Electronics cooling systems
• RO (Reverse Osmosis) prefiltration
• High-purity water systems

What is a Melt-Blown (PP) Filter Cartridge?

Melt-blown filters are manufactured through a process that extrudes melted polypropylene into a web of fibers, which then form a gradient-density structure. This structure captures particles of varying sizes as the fluid moves from the outer surface inward.

Key Features:

• Depth filtration design
• High dirt-holding capacity
• Cost-effective
• One-time use (not washable)
• Typically available in 1–100 µm ratings

Applications:

• General industrial water filtration
• Residential water systems
• Chemical and solvent filtration
• Prefiltration before finer stages

Side-by-Side Comparison

Which Filter Should You Choose?

• Choose a Pleated Filter Cartridge if your application demands high flow rates, low pressure drops, and precise particle removal. They’re ideal for industries requiring strict contamination control.
• Opt for a Melt-Blown (PP) Filter if you’re looking for a cost-effective, reliable, and easy-to-replace solution for less critical applications or as a prefilter in multi-stage systems.

Final Thoughts

Selecting the correct filter is crucial for system performance, longevity, and cost-effectiveness. Whether you’re managing a residential filtration system or a high-volume industrial plant, understanding the differences between pleated and melt-blown filters ensures clean, safe, and efficient water handling.

💧 Pro Tip: Consider combining both filters in a staged setup—using melt-blown filters for rough filtration and pleated filters for fine polishing—to maximize efficiency and lifespan.

Jul 17, 2025

The Indispensable Role of Sand in Water Filtration: A TQ Water Perspective

Access to clean, safe drinking water is a fundamental pillar of human survival and well-being. As global populations expand and industrial activities intensify, the demand for purified water escalates, making effective water filtration more critical than ever. Among the diverse array of filtration techniques, sand filtration stands out as one of the oldest yet most consistently reliable methods. At TQ Water, we understand the profound importance of this technology. This article will explore in depth the function of sand in water filtration, detailing its multifaceted roles, numerous benefits, and the underlying scientific principles that ensure its efficacy.

Introduction to Sand Filtration

Sand filtration, a technique refined over centuries, remains a cornerstone of contemporary water treatment processes. These filters operate by directing water through multiple layers of sand, each meticulously selected for its specific grain size, to progressively remove impurities.

The roots of sand filtration trace back to ancient civilizations; the Egyptians, for instance, utilized basic sand-filled porous pots submerged in river water. By the 19th century, the advent of the slow sand filter in London marked a significant leap forward in its sophistication. Today, modern sand filtration technologies integrate advanced principles from chemistry, biology, and engineering, continually evolving to meet complex water treatment challenges.

Types of Sand Filters

Primarily, two types of sand filters are widely employed in water treatment:

• Slow Sand Filters (SSF):
  • Operate at lower filtration rates (0.1-0.3 m/hour).
  • Heavily reliant on biological processes.
  • Highly effective in removing pathogens and organic matter.
• Rapid Sand Filters (RSF):
  • Feature higher filtration rates (4-21 m/hour).
  • Primarily depend on physical and chemical processes.
  • Require frequent backwashing for maintenance.

How Sand Filtration Works

To fully appreciate the role of sand in water filtration, it’s essential to understand its intricate working mechanisms, which encompass physical straining, sedimentation, adsorption, and vital biological interactions.

Layers of the Filter: A typical sand filter is constructed with multiple distinct layers:

• The Coarse Layer: Comprising larger sand particles, this layer primarily traps significant debris and larger suspended particles.
• Intermediate Layer: Consisting of medium-sized sand grains, it captures smaller particles that bypass the coarse layer.
• Fine Layer: Made of the finest grains, this layer is crucial for capturing the smallest particles and facilitates the crucial formation of a biofilm.
• Support Layer: Usually composed of gravel, this layer supports the sand strata and ensures uniform water distribution across the filter bed.

Mechanisms of Particle Removal: Sand filters employ several fundamental mechanisms to purify water:

• Straining: Coarser particles are physically trapped by the sand grains, with the efficiency dependent on grain size and pore space.
• Sedimentation: Suspended particles settle due to gravity, particularly larger and denser ones, further aiding the filtration process.
• Adsorption: Chemical and physical interactions cause contaminants to adhere to the surface of sand particles. This mechanism is especially vital for removing dissolved substances like heavy metals and various organic compounds.
• Biological Action: Over time, a beneficial layer of biofilm, teeming with microorganisms, develops around the sand particles. This active biofilm effectively degrades organic matter and pathogens, significantly enhancing purification.

Backwashing and Maintenance

Backwashing is a critical maintenance procedure for sand filters, especially for rapid sand filters. This process involves reversing the water flow to lift and suspend the sand bed, thereby dislodging and flushing out accumulated impurities.

• Frequency: Typically performed every 24-72 hours in Rapid Sand Filters.
• Process: Involves the reversal of water flow, expansion of the sand bed, and subsequent removal of trapped particulates.

Benefits of Sand Filtration

The strategic use of sand in water filtration, a core technology championed by TQ Water, offers several compelling advantages:

• Cost-Effectiveness: Sand is an abundant and inexpensive material, contributing to a relatively low lifecycle cost, including both installation and ongoing maintenance.
• Simplicity and Robustness: Sand filters operate without the need for complex machinery, making them well-suited for diverse applications, from small rural communities to extensive urban systems.
• High Efficacy: They are highly effective at removing a wide range of contaminants, including suspended solids, organic material, and pathogens, providing a robust barrier against varied raw water quality inputs.
• Low Energy Requirements: Particularly with slow sand filters, minimal energy input is required, significantly reducing operational costs and environmental footprint.
• Biological Stabilization: The biofilms formed on sand grains play a crucial role in biodegrading organic matter, thereby enhancing the effectiveness of subsequent water treatment stages.

Scientific Principles Underlying Sand Filtration

The impressive effectiveness of sand filtration is rooted in a sophisticated interplay of physical, chemical, and biological principles.

Physical Principles:

• Hydraulic Conductivity: This refers to the ease with which water flows through a porous medium like sand, influenced by sand grain size, porosity, and filter bed depth.
• Porosity and Permeability: Porosity represents the void spaces within the sand, while permeability is the capacity of these spaces to transmit water. High porosity combined with controlled permeability ensures optimal filtration by increasing residence time.

Chemical Principles:

• Adsorption: Contaminants adhere to sand grains through ionic and molecular forces. This process is influenced by the properties of both the sand (e.g., surface area, grain size) and the contaminants (e.g., charge, hydrophobicity).
• Chemical Interactions: Oxidation-reduction reactions and acid-base equilibria can further contribute to contaminant removal. For example, the removal of iron and manganese is often achieved through oxidation and subsequent precipitation.

Biological Principles:

• Biofilm Formation: Microorganisms readily colonize sand grains, forming a dynamic biofilm (often termed the hypogeal layer in slow sand filters) that efficiently traps and degrades organic matter and pathogens.
• Microbial Processes: This active layer facilitates critical microbial processes such as:
  • Nitrification: Autotrophic bacteria convert ammonia to nitrate.
  • Denitrification: Anaerobic bacteria convert nitrate to gaseous nitrogen, effectively removing nitrogenous compounds.

Practical Applications and Case Studies

The versatility of sand filtration is evident across numerous real-world applications:

• Municipal Water Treatment: Cities globally, including Amsterdam, rely on extensive sand filtration systems to treat municipal water supplies, achieving high purity levels for millions of gallons daily.
• Rural and Community Water Supply: In developing countries, slow sand filters are an elegant solution, advocated by organizations like the World Health Organization due to their ease of construction, effectiveness, and low maintenance.
• Industrial Applications: Industries such as brewing, pharmaceuticals, and electronics utilize sand filters to ensure their process water meets stringent quality standards.

Challenges and Limitations

Despite its many advantages, sand filtration does present certain challenges:

• Initial Setup Cost: While operational costs are low, the initial capital investment for large-scale systems can be substantial.
• Space Requirements: Slow sand filters, in particular, demand significant land area, which may not be feasible in densely populated urban environments.
• Potential for Biological Growth: While beneficial, excessive biofilm growth can clog the filter, necessitating careful monitoring and occasional scraping in SSFs.
• Variable Performance: Performance can be affected by fluctuations in raw water quality, with seasonal variations in turbidity and organic content potentially requiring more frequent adjustments and maintenance.

Continuous technological innovations are enhancing the efficacy and applicability of sand filters:

At TQ Water, we are committed to leveraging such robust technologies. Despite the inherent challenges, ongoing research and technological advancements promise to further enhance the capabilities of sand filtration systems, ensuring their continued vital role in providing clean and safe water for generations to come. Whether in vast urban centers or remote rural villages, the humble sand filter remains a powerful testament to the ingenuity of harnessing natural processes for profound human benefit.

Jul 17, 2025

🌞 MB400 Resin and Solar Panel Cleaning

🔹 What Is MB400 Resin? Purolite MB400 is a mixed bed ion exchange resin that combines: Strong Acid Cation Resin (in H⁺ form) Strong Base Anion Resin (in OH⁻ form) These work together to remove nearly all dissolved minerals (like calcium, magnesium, sodium, chloride, sulfates, etc.) from water, producing deionized (DI) water with very low conductivity and total dissolved solids (TDS) — often below 1 µS/cm or 0 ppm.

How MB400 Resin is used in Solar Panel Cleaning:

1. Water Purification System: The resin is typically housed in a filtration system, often a portable deionization unit.
2. Tap Water Input: Regular tap water, which contains various dissolved minerals (like calcium, magnesium, etc.), is fed into this system.
3. Ion Exchange: As the tap water passes through the MB400 resin, the resin’s beads, which are comprised of both strong acid cation and strong base anion resins, capture the positively and negatively charged ions (minerals) from the water.
4. Pure Water Output: The water that exits the system is deionized, meaning it has an extremely low Total Dissolved Solids (TDS) content, often achieving conductivity values of around 0.1 µS/cm.
5. Spot-Free Rinse: This pure DI water is then used to rinse solar panels after they have been brushed or gently cleaned. Because there are no minerals in the water, it dries without leaving any residue, spots, or streaks.

🔹 Why Use DI Water from MB400 for Solar Panels? Using deionized water is critical for spot-free, streak-free cleaning of solar panels, especially in commercial or utility-scale operations. Here’s why: Problem with Tap Water How MB400 Helps Leaves white spots (mineral residue) after drying Produces pure water with no salts Causes long-term damage or hazing on glass Prevents scale or residue buildup Reduces solar panel efficiency over time Maintains panel clarity and performance May contain ions that lead to corrosion Provides non-corrosive ultra-pure rinse

🔹 How MB400 Is Used in Solar Panel Cleaning Water Source: Usually municipal or borehole water Pre-filtration: Sediment and carbon filters remove particles and chlorine RO (optional): Reduces TDS by ~95% MB400 Resin Tank: Polishes water to 0 TDS / <1 µS/cm Application: Pure water is fed through a hose and water-fed pole system or sprayer

🔹 Key Advantages

✅ No drying marks — even in direct sunlight

✅ No chemicals needed — just pure water

✅ Environmentally friendly

✅ Extends life of solar panels

✅ Improves energy efficiency by keeping panels cleaner, longer

⚠️ Notes on Use MB400 resin will exhaust over time, indicated by a rise in TDS or conductivity. A TDS meter or resistivity monitor is recommended to know when to replace or regenerate the resin. Not regenerable on-site unless you have proper chemical handling — usually replaced.

🔧 System Setup Example Stage 1: Sediment filter Stage 2: Activated carbon (optional) Stage 3: RO membrane (optional) Stage 4: MB400 DI Resin Cartridge/Tank

Jul 16, 2025

Indlela i-Reverse Osmosis Eyathuthukiswa Ngayo Ukuze Isetshenziswe EmaSubmarineni

Indaba ye-Reverse Osmosis (RO) iwubufakazi bokuthi ubuchwepheshe obusha buvela lapho kudingeka izixazululo ezingcono. Nakuba i-RO isisetshenziswa kabanzi emakhaya, ezimbonini nasemadolobheni, yasungulwa ekuqaleni ukusiza ama-submarine – izikebhe ezinzima ezihamba ngaphansi kolwandle – ukuthi azinikeze amanzi ahlanzekile avela olwandle. Le ndlela yaholela ekuthuthukisweni kobuchwepheshe obusha bokuhlanza amanzi.

Inkinga Yamanzi Ahlanzekile Ezikebheni Ezihamba Ngaphansi Kolwandle

Ama-submarine abhekana nenkinga enkulu: ukuswela amanzi okuphuza ngesikhathi eside ehlala ngaphansi kwamanzi. Amanzi adingeka kakhulu ukuze abasebenzi baphuze, baphake ukudla, futhi bahlale behlanzekile.

Ngaphambi kokuthi kuthuthukiswe i-RO, ama-submarine ayencike:

• Emanzini agcinwe esikebheni – kodwa lokhu kwakunciphisa isikhathi sokuhlala olwandle
• Ezinhlelweni zokubila (distillation) – ezinkulu, zidla ugesi, futhi kulula ukuthi zonakale uma kuhlanzwe amanzi olwandle

Ngeminyaka yama-1950 kuya kwangama-60s, iNavy yaseMelika yafuna indlela encane, esebenza kahle futhi ethembekile yokuhlanza amanzi olwandle, ikakhulukazi ngesikhathi seMpi Yomshoshaphansi (Cold War), lapho ama-submarine ayedinga ukuhlala isikhathi eside phansi kwamanzi ngaphandle kokuphuma.

Ukuqala Kwe-Reverse Osmosis (RO)

Ngo-1959, ososayensi base-UCLA (University of California, Los Angeles) babonisa okokuqala ukuthi kungenzeka ukuhlunga amanzi olwandle besebenzisa i-membrane – indwangu ekhethekile evumela amanzi ukuthi adlule, kodwa ivimbe usawoti nezinye izinto ezingcolile.

Uhulumeni waseMelika kanye neNavy baqala ukuxhasa ucwaningo ukuze:

• Kwenziwe ama-membrane aqinile
• Kwande ukugeleza kwamanzi
• Kwehliswe amandla asetshenziswa
• Kwenziwe uhlelo oluncane nolulula

Kungani i-RO Ifanele Ama-Submarine

Izici eziyinhloko ezenza i-RO yaba yinhle kakhulu kumasubmarine:

• Idizayini encane – ithatha isikhala esincane
• Ayidingi ukushisa – ifanele indawo lapho ukushisa kungelona usizo noma kuyingozi
• Ayidingi ukulungiswa njalo – iyasebenza isikhathi eside ngaphandle kwezinkinga
• Iyakwazi ukulungiswa ngaphezulu noma ngaphansi kwemfuneko

Ukusetshenziswa Kokuqala Kwezempi

Ngo-1970s, kwafakwa uhlelo lokuqala lwe-RO ema-submarineni aseNavy yaseMelika. Lolu hlelo lwaluqukethe:

• Ama-pompo aphakeme okucindezela amanzi
• Ama-membrane ayindilinga (spiral wound)
• Uhlelo lokuhlanza amanzi ngaphambi kokuwathumela kwi-RO membrane

Nakuba la masistimu okuqala ayengenawo amandla amakhulu, akhombisa ukuthi ama-submarine angakwazi ukuzihlanzela amanzi olwandle abe amanzi okuphuza, ngaphandle kokuxhomeka ezintweni zangaphandle.

Umthelela Nefa Lobuchwepheshe

Ukufakwa kwe-RO kumasubmarine kwashintsha indlela ezisebenza ngayo. Ama-submarine akwazi ukuhlala isikhathi eside ngaphansi kwamanzi, abe nabasebenzi abaningi, futhi angancika kangako ekugcinweni kwamanzi.

Ubuchwepheshe be-RO buqhubekele phambili busebenza:

• Emafektri okwenza amanzi olwandle abe okuphuza
• Ezinhlelweni zokuphuthumayo zokuhlinzeka ngamanzi ezindaweni ezihlaselwe izinhlekelele
• Ezindaweni ezikude ezinganawo amanzi ahlanzekile

Namuhla, i-RO isetshenziswa kakhulu emhlabeni wonke njengeyona ndlela ephambili yokuhlanza amanzi olwandle.

Isiphetho

Ukuthuthukiswa kwe-RO ngenxa yesidingo sama-submarine kwaba yisinyathelo esibalulekile emlandweni wokuhlanzwa kwamanzi. Lokho okwake kwaba isixazululo sezempi, manje sekusiza izigidi zabantu emhlabeni wonke ukuba babe nokufinyelela emanzini ahlanzekile.

Jul 16, 2025

Hoe Omgekeerde Osmose vir Duikbote Ontwikkel is

Die geskiedenis van omgekeerde osmose (RO) is ’n voorbeeld van hoe tegnologiese innovasie ontstaan het uit noodsaak. Hoewel RO vandag algemeen in huishoudings, industrieë en munisipale waterbehandeling gebruik word, is dit oorspronklik ontwikkel vir ’n baie spesifieke en uitdagende omgewing: duikbote. Hierdie geslote, onderwater wêreld het ’n volhoubare en kompakte metode benodig om varswater uit seewater te produseer—’n behoefte wat gelei het tot die geboorte van RO-tegnologie.

Die Varswater-Uitdaging onder die See

Duikbote, veral dié wat vir lang tydperke onder water bly, het een groot beperking: die voorsiening van varswater. Bemanningslede benodig water vir drink, kook en persoonlike higiëne, maar ruimte en hulpbronne aan boord is baie beperk.

Voor RO het duikbote staatgemaak op:

• Gebottelde of gestoorde water – wat die duur van ’n sending beperk het
• Distillasie-stelsels – groot, energie-intensief, en geneig tot korrosie en skalering

Teen die middel van die 20ste eeu het die Amerikaanse Vloot besef dat ’n doeltreffender, kleiner en meer betroubare oplossing nodig was, veral met die koms van kern-aangedrewe duikbote tydens die Koue Oorlog.

Die Ontstaan van Omgekeerde Osmose

Die konsep van omgekeerde osmose is vir die eerste keer in 1959 getoon toe navorsers aan die Universiteit van Kalifornië, Los Angeles (UCLA), ’n membraan ontwikkel het wat sout uit water kon verwyder. Hierdie membraan het watermolekules deurgelaat, maar sout en onsuiwerhede geblokkeer.

Teen die vroeë 1960’s het die Amerikaanse regering en Vloot die potensiaal van hierdie tegnologie begin ondersoek. Hulle het navorsing befonds om:

• Membraan-duursaamheid te verbeter
• Watervloei te verhoog
• Energieverbruik te verminder
• Stelsels meer kompak en maklik onderhoubaar te maak

Waarom RO Ideaal was vir Duikbote

RO het vinnig gewys dat dit die ideale oplossing was vir die unieke behoeftes van duikbote:

• Kompakte ontwerp – baie kleiner as distillasie-eenhede
• Geen hitte benodig nie – wat belangrik is vir energiebesparing en stealth
• Lae onderhoud – minder geneig tot fout of breek
• Skaleerbaarheid – aanpasbaar vir verskillende bemanningsgroottes

Eerste Militêre Toepassings

Teen die 1970’s is die eerste RO-stelsels suksesvol getoets en aan boord van Amerikaanse duikbote geïnstalleer. Hierdie stelsels het bestaan uit:

• Hoëdruk pompe
• Spiraalgewikkelde RO-membrane
• Voorfiltrasiestelsels om groot deeltjies te verwyder en die membraan te beskerm

Hoewel aanvanklike stelsels beperkte kapasiteit gehad het, het dit bewys dat duikbote hul eie varswater onafhanklik en volhoubaar uit seewater kon produseer.

Invloed en Nalatenskap

Die gebruik van RO op duikbote het die aard van onderwater operasies fundamenteel verander. Dit het duikbote in staat gestel om langer onder water te bly, meer mense aan boord te hê, en afhanklikheid van varswater-voorraad drasties te verminder.

Hierdie militêre innovasie het ook die deur oopgemaak vir:

• Grootskaalse burgerlike ontsouting
• Noodwaterstelsels in rampgebiede
• Afgeleë gemeenskappe sonder toegang tot skoon water

Vandag is RO die wêreld se mees gebruikte tegnologie vir ontsouting en varswaterproduksie.

Gevolgtrekking

Die ontwikkeling van omgekeerde osmose vir duikbote was ’n keerpunt in waterbehandelingstegnologie. Wat begin het as ’n militêre oplossing, het later miljoene mense wêreldwyd toegang tot skoon drinkwater gegee—’n ware voorbeeld van hoe tegnologie uit nood ’n wêreldwye impak kan hê.
